T&H

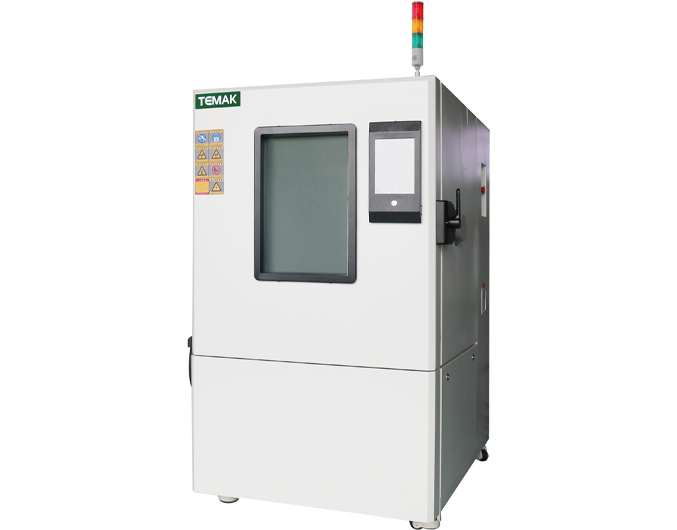

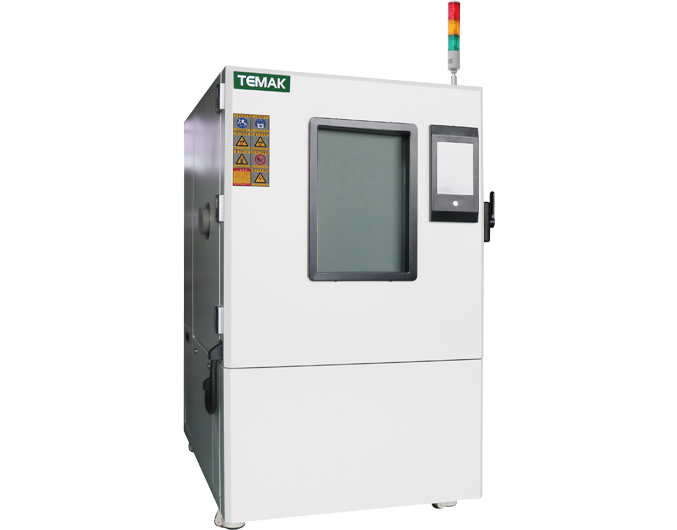

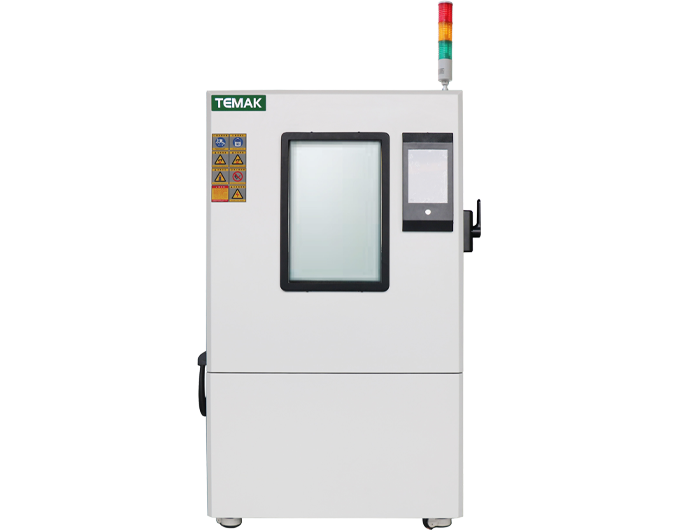

Temak constant temperature and humidity chamber can accurately simulate the impact of the use environment on user products, and is widely used in electronics, automobiles, aerospace, transportation and other industries.
| Specification | KTM-THA | KTM-THB | KTM-THC | KTM-THD | KTM-THG |
| Inner box size（W*D*H)mm | 500*400*500 | 500*600*750 | 600*800*850 | 1000*800*1000 | 1000*1000*1000 |
| Carton size（W*D*H)mm | 823*1280*1580 | 1135*890*1620 | 1265*1090*1720 | 1515*1520*1870 | 1515*1720*1870 |
| Content volume（L） | 100 | 225 | 408 | 800 | 1000 |
| Thermal insulation material | Polyurethane foam + glass rock wool | ||||
| Inner box material | 304 stainless steel | ||||
| Outer box material | 304 stainless steel | ||||
| Temperature range（℃） | -70 ~ 180 | ||||
| Humidity range（R.H.） | 10% ~ 98% | ||||
| Temperature distribution uniformity（℃） | ≤2 | ||||
| Humidity distribution uniformity（R.H.) | ±3 ~ ±5（center point） | ||||
| Temperature stability（℃） | ±0.2 | ||||
| Humidity stability（R.H.) | ±2 | ||||
| Temperature accuracy（℃） | ±0.01 | ||||
| Humidity accuracy（R.H.) | ±0.1 | ||||
