Salt Spray

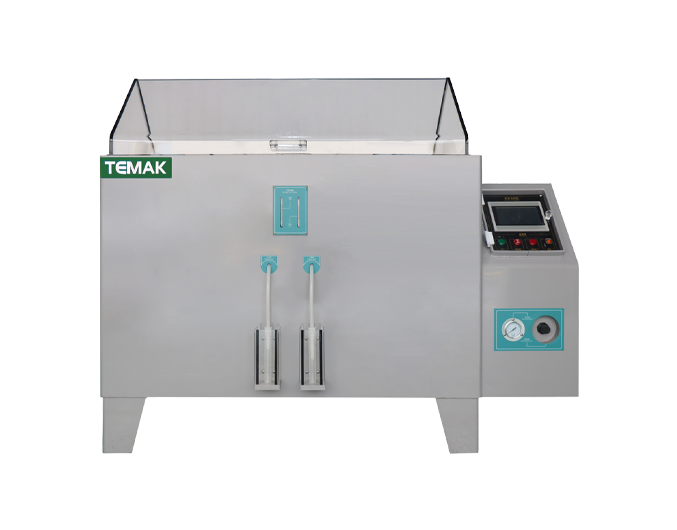

Temak Compound Salt Spray Test Chamber can accurately simulate large temperature, humidity, drying, freezing, external air introduction and other air environments. The refrigeration adopts a separate design of refrigeration system and spray system, which can realize salt water spray, humidification, forced drying, salt water immersion, natural Drying and other salt spray test methods.
| Specification | KTM-CCT1200 | KTM-CCT1600 | KTM-CCT2000 |
| Inner box size（W*D*H)mm | 1200*600*500 | 1600*1000*500 | 2000*1000*500 |
| Carton size（W*D*H)mm | 2550*1600*1400 | 2920*2150*1650 | 3320*2150*1650 |
| Box material | High temperature and corrosion resistant fiberglass material | ||
| Saturated bucket | Stainless steel cylindrical saturated barrel | ||
| Temperature range（℃） | RT ～ 80 / -20 ～ 80 | ||
| Humidity range（%RH） | 50% ～ 100% | ||
| Temperature deviation（℃） | ±2.0 | ||
| Temperature fluctuation（℃） | ±0.5 | ||
| Humidity fluctuation（%RH） | ±3% | ||
| Falling fog amount | 1-2ml/80 c㎡/hr(Adjustable） | ||
| Fog uniformity | ≤0.3 ml/hr | ||
