WP & DP

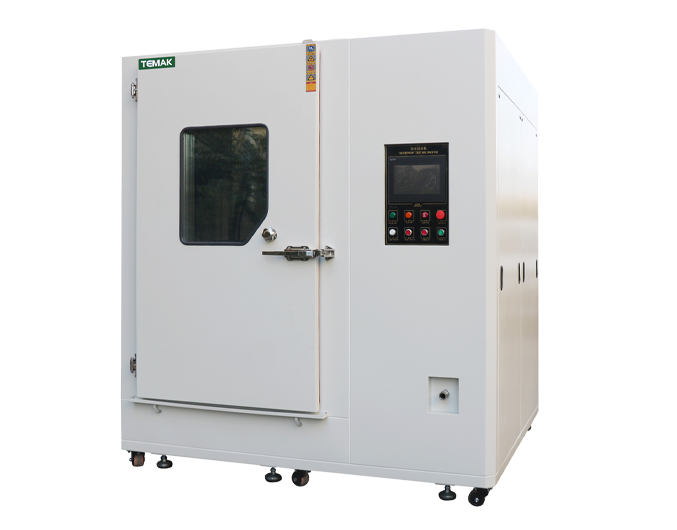

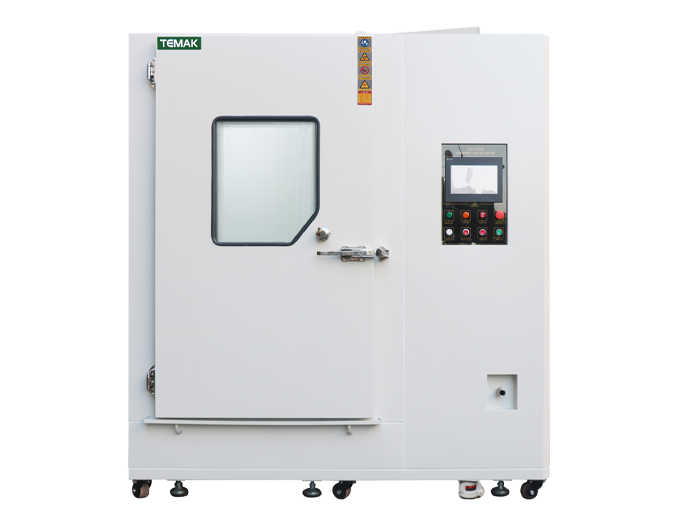

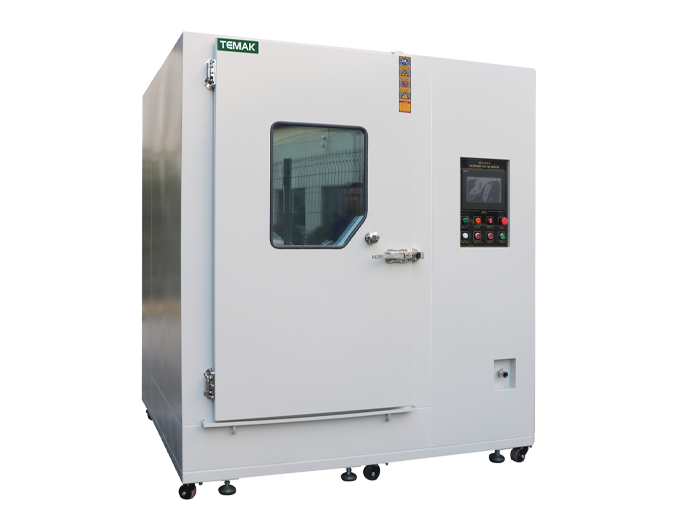

Water entering the product may cause circuit short circuit or increased resistance, uneven heating and cooling, product rupture or failure, etc. Waterproof test chambers are often used in electronics, automobiles, communications... and other product shells to test the waterproofing effect of products using simulated rainfall. PERFORMANCE AND EVALUATION Serious failure caused by loss of waterproofing properties of the product.
| Specification | KTM-WT1000 | KTM-WT1300 | KTM-WT1700 |
| Inner box size（W*D*H)mm | 1000*1000*1000 | 1300*1200*1800 | 1700*1400*1900 |
| Carton size（W*D*H)mm | 1500*1270*1940 | 2500*1450*2500 | 2900*1700*2600 |
| Standard test | JIS, ISO, IEC60529, DIN40050, GB2423, GB4208 and other related shell tests | ||
| JIS test | R flow 1.8L/min-3.9L/min S flow 24.5L/min-39.2L/min R pressure 0.1kgf/c㎡-0.3kgf/c㎡ S pressure 1kgf/c㎡-3kgf/c㎡ | ||
| Drip test | IPX1 IPX2 Dripping speed：1-1.5mm/min Adjustable Dripping speed3-3.5mm/min Adjustable | ||
| Swing tube test | IPX3 IPX4 Oscillating tube：±60℃ ~ ±180℃ flow：0.07L/min per Nozzl | ||
| Water spray test | IPX5 IPX6 Injection：2.5m - 3m flow：12.5L/min - 100L/min | ||
| High pressure injection | IPX9K Injection pressure：80Mpa - 100Mpa flow：14L - 16L/min | ||
