Illumination

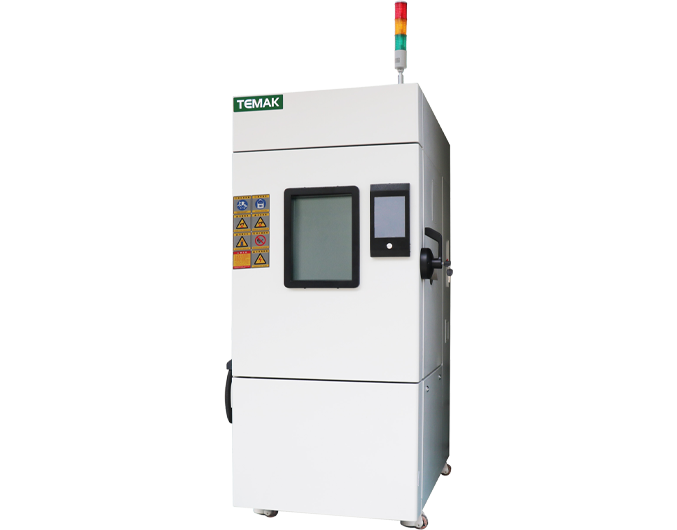

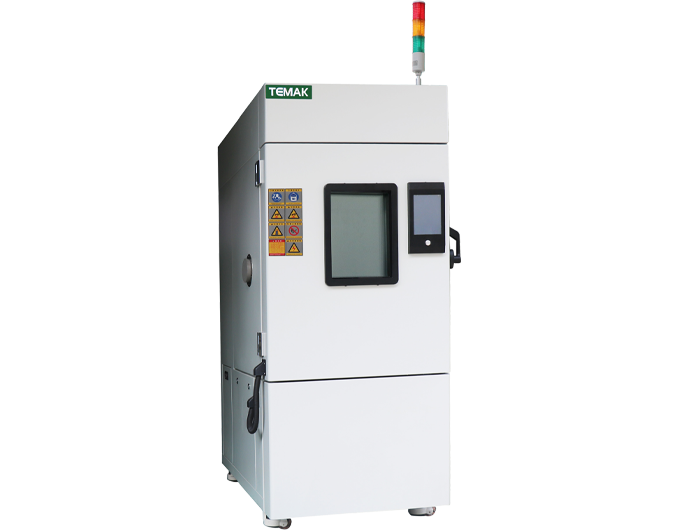

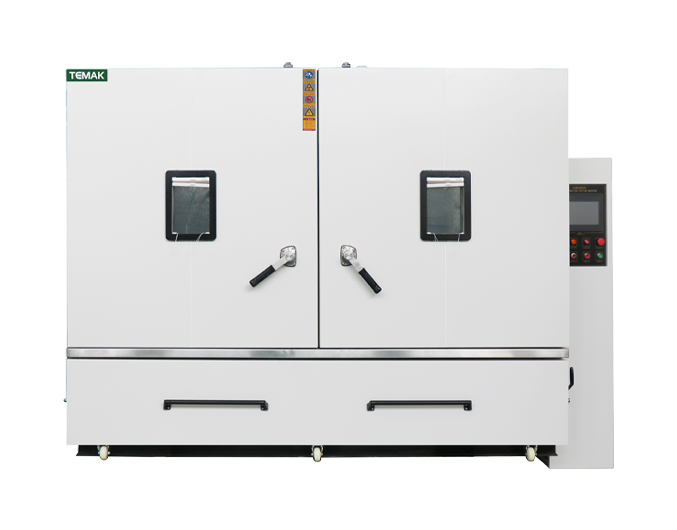

UV Aging Test Chamber
Temak UV Aging Test Chamber meets the UV pretreatment test in 10.10 of IEC61215/61646, and can carry out UV aging, temperature and humidity composite UV aging and other tests.
Illumination
Temak UV Aging Test Chamber meets the UV pretreatment test in 10.10 of IEC61215/61646, and can carry out UV aging, temperature and humidity composite UV aging and other tests.
| Specification | KTM-SST900 | KTM-SST1200 | KTM-SST1600 | KTM-SST2000 |
| Inner box size（W*D*H)mm | 900*600*500 | 1200*600*600 | 1600*1000*500 | 2000*1000*500 |
| Carton size（W*D*H)mm | 1420*780*1360 | 1720*780*1400 | 2450*1250*1500 | 2850*1250*1500 |
| Inner and outer box material | PVC/glass fiber reinforced plastic | |||
| Test temperature range（℃） | 35 - 55 | |||
| Test humidity range（℃） | 85% - 100% | |||
| Temperature fluctuation（℃） | ±0.5 | |||
| Temperature resolution（℃） | 0.1 | |||
| Spray method | Continuous or intermittent alternation | |||
| Spray falling amount | 1-2ml/80c㎡/hr（Adjustable range 1-3ml/80c㎡/hr） | |||
| Fog uniformity | ±0.3ml/80c㎡/hr | |||
| Sample test angle | at angle of 20°±5° | |||
