Illumination

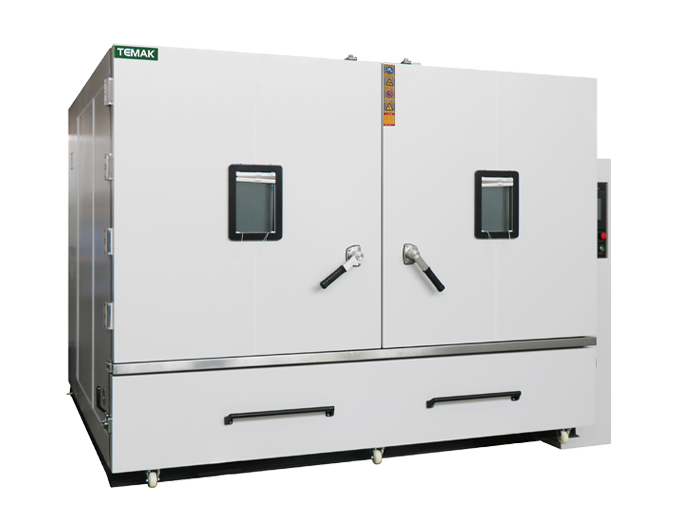

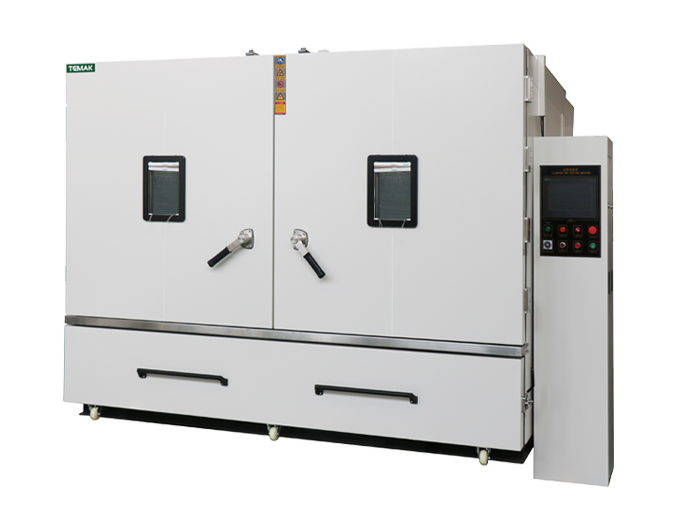

The Temak Solar Simulation Test Chamber meets the IEC61215-2016 hot spot test and IEC60904 standard-related tests. It uses a water-cooled compressor for temperature control. It has a wide spectrum wavelength range, a wide range of light source power options, and can be customized.
| light source | Ion lamp |
| Light source level | BBA grade (within the lamp warranty period of 2000H) |
| Spectral wavelength | 300nm - 1200nm |
| Irradiation intensity | 600w/㎡ - 1000w/㎡ |
| Unevenness | ＜5% |
| Temperature range（℃） | 40 - 110 Adjustable |
| Lamp power | 2000W effective irradiation area meets 1, 2, and 4 blocks (other customization) |
| Temperature control method | Water-cooled compressor is used for temperature control |
