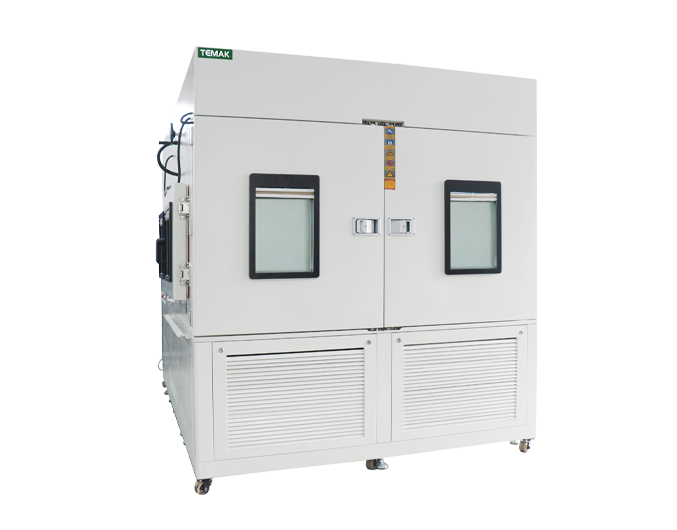

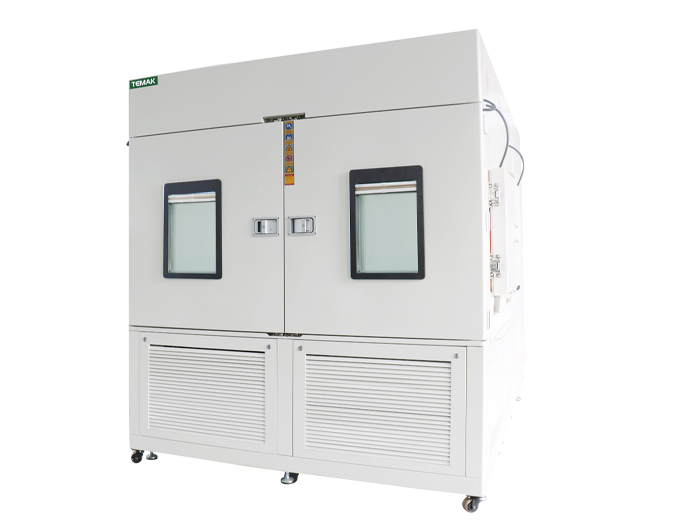

Lamp Fog Test Chamber

The fog in the car lights will seriously affect the appearance and performance of the car lights. The comprehensive fog test chamber for car lights can simulate the surface of the car lights (outdoor environment), the back of the car lights (engine environment), and the left area simulates the outdoor environment of the car lights surface (temperature and humidity). , rain, wind speed, light), the right area simulates the engine environment (temperature, humidity, wind speed) behind the car lights.

Download

2024新澳门免费原料网

2024新澳门免费原料网

2024新澳门免费原料网

Device parameters

Left area box size W*D*H (mm)1100*1000*1000
Right area box size W*D*H (mm)1000*1000*1000
Temperature range (℃)

-10~100(left)、-30~-100

Can be designed according to requirements

Humidity range10% ~ 98%R.H
Heating rate≤ 3 ℃/min
Cooling rate≤ 1 ℃/min
Caught in the rainHose spraying (simulating car washing, rain), flow rate and water temperature are subject to different standards.
illuminationSimulate sunlight, total irradiation intensity ≥1000W/㎡
Wind speedThe left area simulates the wind speed during driving (0-20m/s); the right area simulates the wind speed during engine compartment electronic wind cooling (0-10m/s)
Standard configurationHD camera monitoring (temperature during use ≤80℃)
