Temp Shock

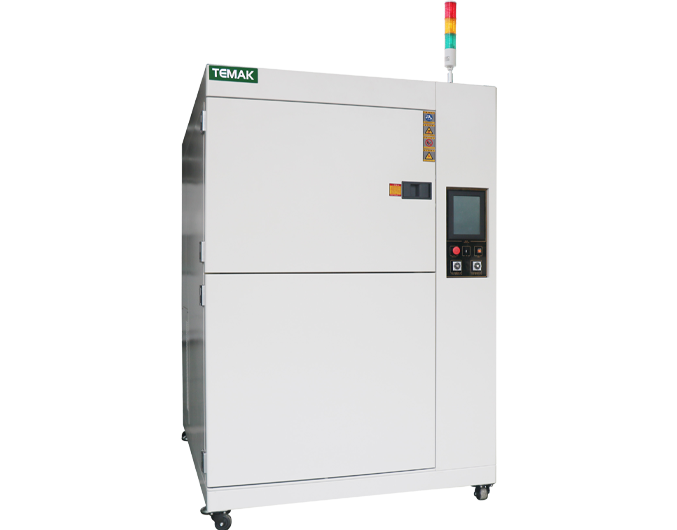

Thermal Shock Test Chamber(Two Zone)

The two-box hot and cold shock chamber consists of two boxes, a high temperature box and a low temperature box. It is used to test the material structure or composite materials. The degree to which they can withstand extreme high and low temperatures in a continuous environment can be tested in the shortest time. Chemical changes or physical damage to the specimen caused by thermal expansion and contraction.

Download

2024新澳门免费原料网

2024新澳门免费原料网

2024新澳门免费原料网

Device parameters

SpecificationKTM-MTSAKTM-MTSBKTM-MTSCKTM-MTSD
Inner box size(W*D*H)mm400*400*300500*500*300600*600*300800*800*400
Carton size(W*D*H)mm1400*1820*22001500*2120*22001620*2220*22201910*2580*2200
Thermal insulation materialPolyurethane foam + glass rock wool
Inner box material304 stainless steel
Outer box material304 stainless steel
Preheating temperature range(℃)60 ~ 200
Precooling temperature range(℃)-10 ~ -80
High temperature impact max (℃)150/180
Low temperature shock max(℃)-40/-55/-65
Return time10Sec内
Temperature distribution deviation(℃)±2.0
